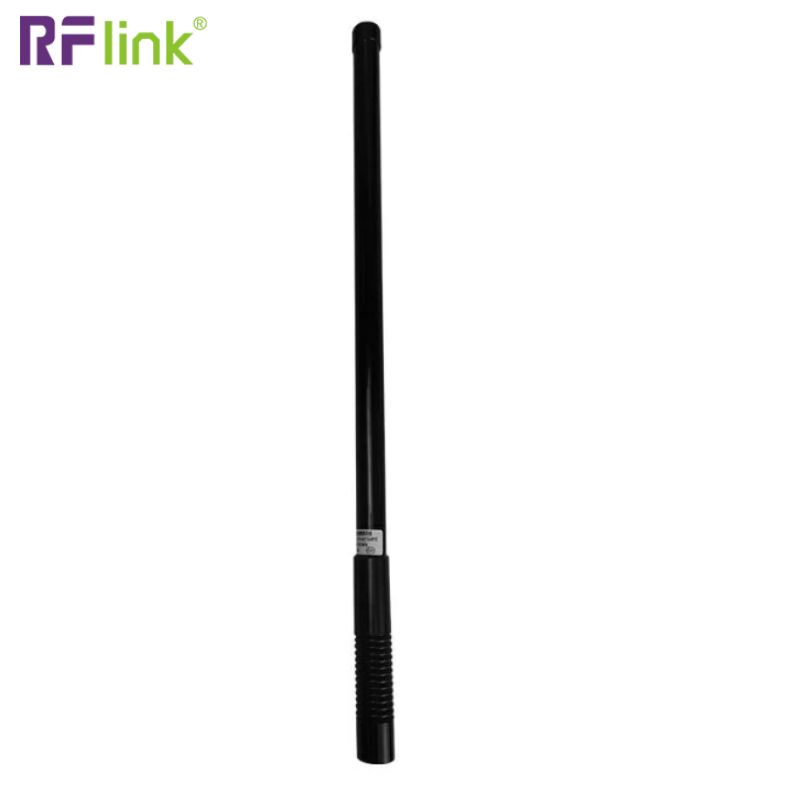

This antenna is a specialized antenna designed for applications such as anti-drone systems,wireless communication, and IoT devices. These antennas are optimized for the 868MHz and 915MHz frequency bands Omnidirectional antenna for Anti Drone has high gain characteristics that can enhance the antenna's ability to transmit and receive signals.
Frequency Range(MHz)：433-5800 MHz
Gain: 5-10 dbi
Center frequency characteristic impedance (Ω)：50
Connector Type：N-Female or N-Male
Application: Omni Jammer
| Frequency Range(MHz) | 433-5800 Mhz |
| Gain(dBi) | 5-15 dBi |
Horizontal Beamwidth(3dB) | 360° |
Vertical Beamwidth(°) | 60° |
Polarization | Vertical |
| VSWR | ≤ 1.5 |
Impedance | 50 Ω |
| Connector | N-Female or N-Male |
| Max. Power | 100 W |
| Lightning Protection | DC Ground |
Dimension | ɸ710mm*25mm |
Weight | 0.46 kg |
Operating Temperature | -40℃～+65℃ |
High-performance antenna supports multiple connector types (SMA, RP-SMA, N-type, and MCX), ensuring broad compatibility with various wireless devices and systems. Its applications include:
Drone remote control systems
Wireless monitoring & security alarms
Industrial IoT & automation
Featuring 868MHz/915MHz omnidirectional coverage, it delivers stable performance even in complex electromagnetic environments, making it particularly effective for anti-drone systems where reliable signal integrity and interference resistance are critical.
• Anti-Drone Detection & Jamming Systems
• Drone Remote ID & Tracking
• Wireless Security & Surveillance Networks
• Industrial IoT & Smart Sensor Networks
• LoRa/LoRaWAN & Long-Range Wireless Communication
Dongguan RenFeng Electronic Technology Co.,Ltd
Email: bellasu@rflink.net.cn
Mobile Phone: +86 1379-4978-989
Address: No.1 Sankeng Qinghutou Tangxia Dongguan Guangdong China
1. What is the main purpose of this antenna?
This antenna is designed for anti-drone systems, providing reliable signal detection, tracking, and jamming at 868MHz and 915MHz frequencies.
2. Is it suitable for outdoor use in harsh environments?
Yes, its rugged design ensures weather resistance and stable performance in challenging outdoor conditions.
3. Does it support long-range communication?
Yes, with omnidirectional coverage, it enables wide-area detection and is ideal for LoRa, drone tracking, and wireless security systems.
