What Is WiFi Omnidirectional Antenna?

Comprehensive Analysis of WiFi OmniDirectional Antennas

In the realm of wireless communication, the WiFi omniDirectional Antenna stands as a fundamental component that enables seamless connectivity across multiple devices and directions. This comprehensive guide explores the technical specifications, operational characteristics, practical applications, and maintenance protocols for these essential wireless communication tools.

Technical Definition and Operational Principles

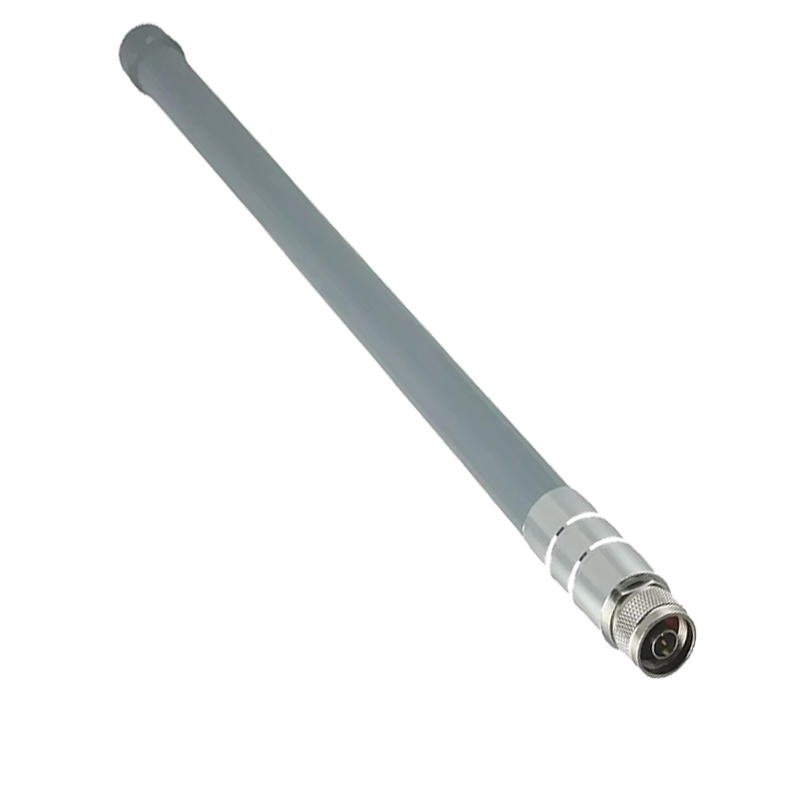

A WiFi omniDirectional Antenna is a specialized radio frequency device designed to radiate and receive electromagnetic signals uniformly in all horizontal directions, creating a 360-degree coverage pattern. Unlike directional antennas that focus energy in specific directions, omnidirectional antennas provide comprehensive coverage ideal for general-purpose wireless networking. These antennas operate primarily in the 2.4 GHz and 5 GHz frequency bands, complying with IEEE 802.11 standards for wireless local area networking.

The fundamental operating principle involves creating a doughnut-shaped radiation pattern where maximum radiation occurs in the horizontal plane while diminishing toward the vertical axis. This characteristic makes them particularly suitable for environments requiring uniform coverage across a horizontal plane. The antenna gain, typically measured in dBi (decibels relative to an isotropic radiator), ranges from 2 dBi to 15 dBi for commercial models, with higher gain models providing extended coverage but with modified radiation patterns.

Key Technical Characteristics with Professional Data

Radiation Pattern and Coverage

Omnidirectional antennas feature a toroidal radiation pattern with 360-degree horizontal coverage and vertical beamwidth typically between 7 to 15 degrees for standard models. The vertical plane radiation pattern creates what is technically described as a "doughnut" shape, with null spaces directly above and below the antenna. High-gain omnidirectional antennas achieve their increased performance by compressing the vertical beamwidth, which can narrow to as little as 5 degrees for long-range applications, effectively trading vertical coverage for extended horizontal reach.

Gain Specifications

Commercial WiFi omnidirectional antennas typically offer gains ranging from 2 dBi for basic rubber duck antennas to 15 dBi for high-performance outdoor models. The gain directly influences the effective coverage area, with each 3 dBi increase effectively doubling the power density in the preferred radiation direction. It's crucial to understand that while higher gain extends coverage distance, it does so by redistributing rather than amplifying the total radiated power, in compliance with the fundamental principles of antenna reciprocity and conservation of energy.

Frequency Response and Bandwidth

Modern dual-band omnidirectional antennas support both 2.4 GHz (2400-2483.5 MHz) and 5 GHz (5150-5850 MHz) frequency bands with impedance matching of 50 ohms ±10%. The voltage standing wave ratio (VSWR) for quality antennas typically measures less than 2:1 across operational bands, ensuring efficient power transfer and minimal signal reflection. The bandwidth capacity varies by design but generally exceeds 100 MHz per band to accommodate multiple channels without significant performance degradation.

Polarization and Multipath Performance

Most WiFi omnidirectional antennas employ vertical polarization, aligning with the standard polarization of consumer WiFi devices. The antenna's ability to handle multipath signals—reflections arriving from multiple paths—is quantified through the diversity performance, with modern MIMO (Multiple Input Multiple Output) antennas featuring 2x2, 3x3, or 4x4 spatial streams. The envelope correlation coefficient between diversity antennas in MIMO systems is typically maintained below 0.5 to ensure effective spatial diversity gain.

Power Handling and Connector Types

Standard omnidirectional antennas are rated for power handling capacities between 10 to 100 watts, far exceeding the output of typical WiFi routers which generally transmit at 0.1 to 1 watt. Common connector types include RP-SMA, N-type, and U.FL connectors, with N-type connectors preferred for outdoor installations due to their superior weatherproofing and lower signal loss characteristics, typically exhibiting insertion loss of less than 0.2 dB at 6 GHz.

Application Scenarios and Deployment Considerations

Enterprise Wireless Networks

In corporate environments, omnidirectional antennas deployed in ceiling-mounted access points provide comprehensive coverage throughout office spaces, conference rooms, and common areas. The typical deployment strategy involves placing access points with omnidirectional antennas at calculated intervals, often every 15-20 meters in open office plans, to ensure seamless roaming and consistent signal strength of at least -67 dBm throughput-critical areas.

Educational Institutions and Campuses

Schools and universities utilize high-gain omnidirectional antennas in outdoor access points to create extensive wireless coverage across campuses. These installations often employ antennas with gains of 8-12 dBi mounted on building exteriors or dedicated poles, providing coverage radii extending to 200 meters in open areas while supporting hundreds of concurrent connections through sophisticated sectorization techniques.

Public Hotspots and Hospitality

Hotels, airports, and coffee shops deploy omnidirectional antennas in access points strategically positioned to serve high-density user environments. The antennas in these scenarios are optimized for client density rather than pure range, with specialized designs that maintain performance with 50+ concurrent connections per access point while implementing advanced band steering technologies to balance load between 2.4 GHz and 5 GHz networks.

Industrial IoT and Wireless Sensor Networks

Manufacturing facilities and warehouses implement ruggedized omnidirectional antennas for machine-to-machine communication and sensor networks. These industrial-grade antennas feature enhanced protection against environmental factors with IP67 ratings for dust and water resistance, operating temperature ranges from -40°C to +85°C, and specialized coatings to resist chemical exposure while maintaining consistent radiation patterns.

Residential Multi-Story Deployments

In home environments, omnidirectional antennas in consumer routers provide whole-house coverage when positioned optimally. For multi-story residences, the vertical radiation pattern becomes particularly important, with effective signal penetration through floors typically experiencing attenuation of 15-25 dB per floor, necessitating strategic placement or mesh networking solutions for comprehensive coverage.

Comprehensive Maintenance Protocols

Regular Inspection and Cleaning Procedures

Conduct visual inspections quarterly for outdoor installations and semi-annually for indoor deployments. Examine antenna elements for physical damage, corrosion, or deformation that could alter radiation patterns. Clean antennas using isopropyl alcohol solution (70-90% concentration) and lint-free cloths, avoiding abrasive materials that could damage protective coatings. For outdoor units, inspect mounting hardware for tightness and evidence of weathering, retorquing to manufacturer specifications which typically range from 15-25 Nm for pole mounts.

Connector Maintenance and Signal Integrity

Inspect RF Connectors every six months for oxidation, pitting, or looseness. Apply appropriate dielectric grease to outdoor connectors to prevent moisture ingress, which can cause impedance mismatches and increase VSWR beyond acceptable thresholds. Test cable assemblies periodically using time-domain reflectometry to identify potential damage or degradation, with particular attention to locations where cables bend or contact other surfaces. Replace any cable showing signal loss exceeding 0.5 dB per meter at operational frequencies.

Environmental Protection and Weatherproofing

For outdoor installations, ensure weatherproofing integrity by inspecting sealants and gaskets annually, replacing any showing signs of hardening, cracking, or compression set. Use UV-resistant electrical tape and cold-shrink tubing at all connection points, with particular attention to the lightning arrestor grounding system which should maintain resistance to ground of less than 5 ohms. In coastal environments, implement more frequent inspection cycles due to accelerated corrosion from salt spray.

Performance Monitoring and Documentation

Implement continuous RF environment monitoring using specialized tools to track signal strength, noise floor, and interference patterns. Document baseline performance metrics including received signal strength indicator (RSSI), signal-to-noise ratio (SNR), and retransmission rates. Establish alert thresholds for performance degradation, typically triggering investigations when RSSI values drop by more than 10 dB from established baselines or when packet error rates exceed 5%.

Preventive Replacement Scheduling

Develop structured replacement schedules based on manufacturer recommendations and observed environmental factors. Generally, outdoor omnidirectional antennas should be considered for replacement after 5-7 years of continuous service, while indoor units may remain operational for 7-10 years. Maintain inventory of critical spares, particularly for antennas supporting mission-critical operations, to minimize downtime during failure events.
