RFID circular polarized panel antenna covers 850–930MHz for warehouses and vehicles. This RFID circular polarized panel antenna delivers 12dBi gain and an N female connector with 0.4m cable. The RFID circular polarized panel antenna provides focused 50W coverage and strong tag-orientation tolerance.
Dongguan Renfeng Electronic Technology Co., Ltd.

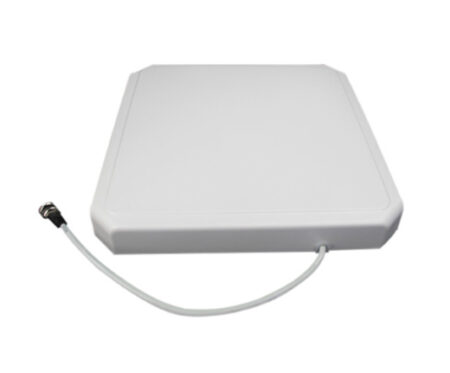

850–930MHz 12dBi High-Gain Circular Polarized RFID Panel Antenna
Circularly polarized 850-930MHz 12dBi RFID panel antenna covering 850–930MHz, with N female connector and 50W power handling. The 258mm×258mm×34mm panel provides focused directional coverage for warehouses and vehicle identification and fixed reader or gateway installations.
Contact us
Contact us
| Antenna Type | Directional Panel Antenna |
|---|---|
| Frequency Range | 850MHz-930MHz |
| Gain | 12dBi |
| VSWR | ≤1.5 |
| Connector | N Female |
| Polarization | Circular |
| Radiation Pattern | Directional |
| Max Input Power | 50W |
| Cable | |
| Cable Length | 0.4m (customizable) |
| Dimensions | 258mm×258mm×34mm |
| Weight | 850g |
| Material | Aluminum |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
