868MHz flexible whip antenna covers 848–888MHz for handheld LoRa devices. This 868MHz flexible whip antenna offers 3dBi gain, 20W handling, and an SMA male connector. The 868MHz flexible whip antenna uses a bendable 110mm TPEE body for adjustable, space-saving installation.
Dongguan Renfeng Electronic Technology Co., Ltd.

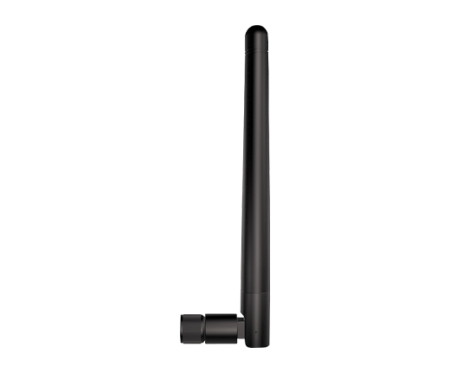

868MHz 3dBi Flexible Whip Antenna with SMA Male Connector
Compact 868MHz 3dBi flexible whip antenna covering 848–888MHz, with SMA male connector and 20W power handling. The 110mm±2mm TPEE body provides omnidirectional coverage for handheld LoRa devices and space-conscious external mounting.
Contact us
Contact us
| Antenna Type | Rubber Duck Antenna |
|---|---|
| Frequency Range | 848-888MHz |
| Gain | 3dBi |
| VSWR | ≤1.5 |
| Connector | SMA Male |
| Polarization | Vertical |
| Radiation Pattern | Omnidirectional |
| Max Input Power | 20W |
| Cable | |
| Cable Length | |
| Dimensions | 110mm±2mm |
| Weight | 8g |
| Material | TPEE |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
