915MHz mini rubber duck antenna covers 895–935MHz for portable LoRaWAN sensors. This 915MHz mini rubber duck antenna provides 2dBi gain, 10W handling, and an SMA male connector. The 915MHz mini rubber duck antenna measures only 52mm and uses a lightweight TPEE body for compact mounting.
Dongguan Renfeng Electronic Technology Co., Ltd.

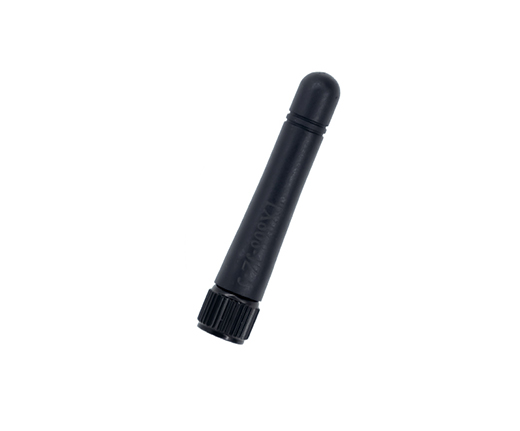

915MHz 2dBi Mini Rubber Duck Antenna, SMA Male
Compact 915MHz 2dBi mini rubber duck antenna covering 895–935MHz, with SMA male connector and 10W power handling. The 52mm TPEE body provides omnidirectional coverage for portable LoRaWAN sensors and space-conscious external mounting.
Contact us
Contact us
| Antenna Type | Rubber Duck Antenna |
|---|---|
| Frequency Range | 895-935MHz |
| Gain | 2dBi |
| VSWR | ≤4.0 |
| Connector | SMA Male |
| Polarization | Vertical |
| Radiation Pattern | Omnidirectional |
| Max Input Power | 10W |
| Cable | |
| Cable Length | |
| Dimensions | 52mm |
| Weight | 6g |
| Material | TPEE |
| Operating Temperature | -30°C to +75°C |
| Storage Temperature | -30°C to +75°C |
