868/915MHz magnetic mount antenna covers 860–960MHz for LoRa gateways and vehicles. This 868/915MHz magnetic mount antenna offers 6dBi gain, a magnetic base, and 1m RG174 cable with SMA male connector. The 868/915MHz magnetic mount antenna enables quick setup and stable all-around coverage.
Dongguan Renfeng Electronic Technology Co., Ltd.

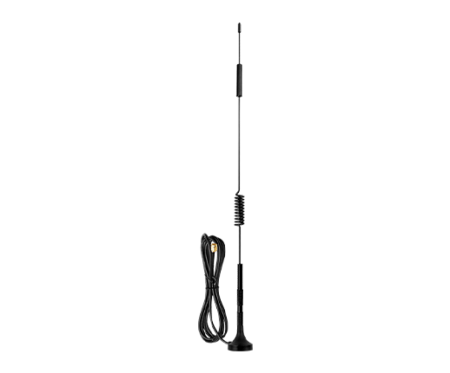

868/915MHz 6dBi Wideband Magnetic Mount Antenna
Magnetic-mount 868/915MHz 6dBi magnetic mount antenna covering 860–960MHz, with SMA male connector and 1M RG174 cable. Designed for LoRa gateways and vehicles, it enables quick non-permanent installation with reliable omnidirectional coverage.
Contact us
Contact us
| Antenna Type | Magnetic Mount Antenna |
|---|---|
| Frequency Range | 860MHz-960MHz |
| Gain | 6dBi |
| VSWR | ≤1.5 |
| Connector | SMA Male |
| Polarization | Vertical |
| Radiation Pattern | Omnidirectional |
| Max Input Power | 20W |
| Cable | RG174 |
| Cable Length | 1m (customizable) |
| Dimensions | 360mm |
| Weight | 45g |
| Material | Carbon Steel + ABS |
| Operating Temperature | -30°C to +75°C |
| Storage Temperature | -30°C to +75°C |
